Thunderbolt 4 BLAZE Docking Station
Perfect for when speed and performance matter, this Thunderbolt™ 4 certified dock can handle 40Gbps of data, allowing you to connect to two displays with a single cable, or maximise high-speed peripherals like external hard drives. Unlike existing Thunderbolt™ docks which only provide a single Thunderbolt™ downstream port, the BLAZE dual monitor docking station can connect up to three downstream Thunderbolt™ or USB 4.0 peripherals. SD card, Ethernet and USB-A connections make BLAZE an invaluable tool for creative professionals and power users alike.

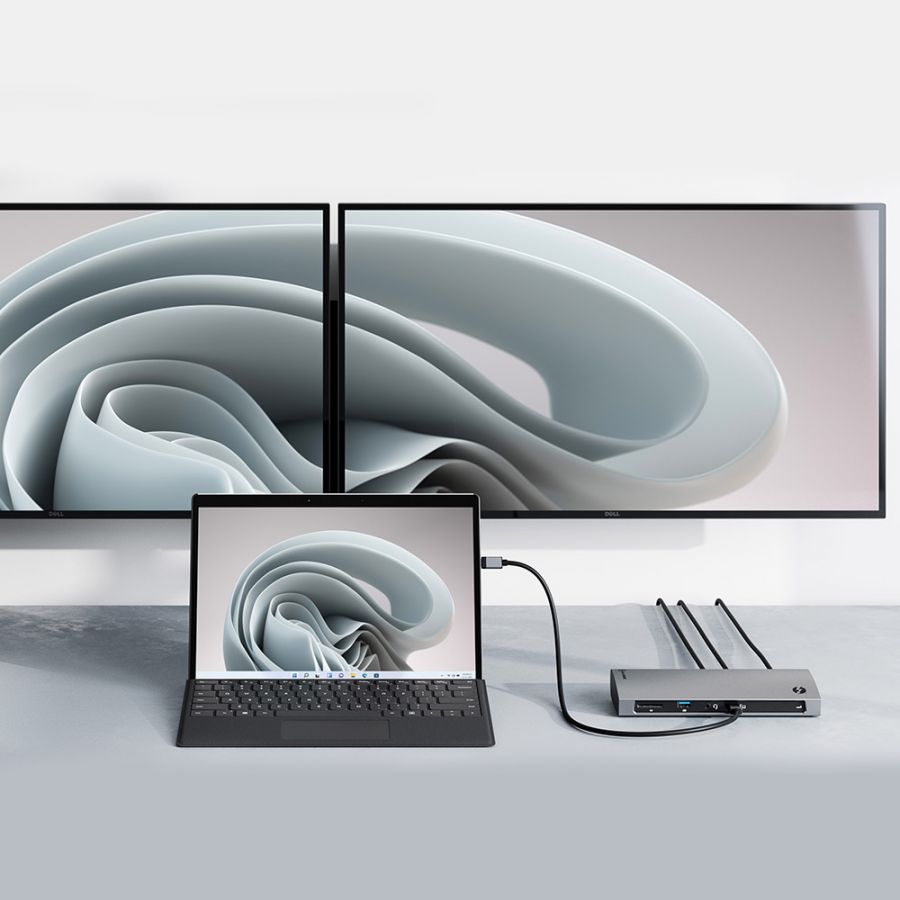

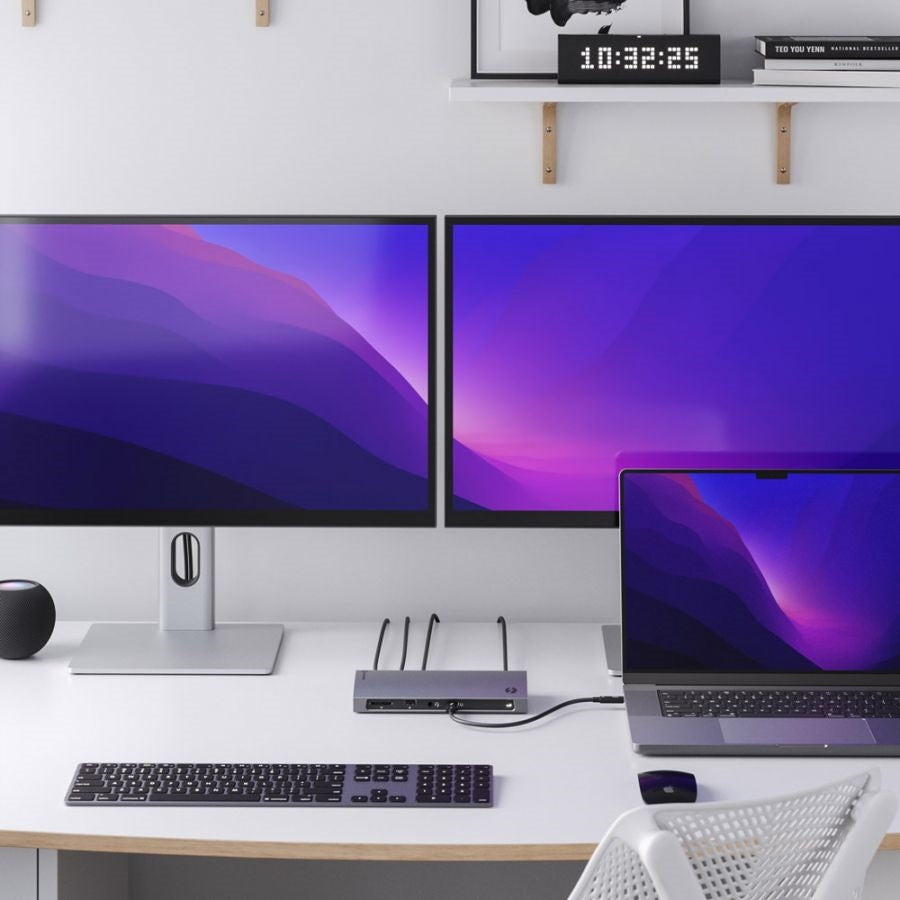

The BLAZE Thunderbolt™ 4 dock connects Thunderbolt computers to two 4K displays, while USB-C DP Alt Mode computers can connect to one 4K screen:
- Thunderbolt 3 or 4: Dual 4K monitors at 60Hz*
- USB-C (DP Alt Mode): Single 4K monitor at up to 60Hz†

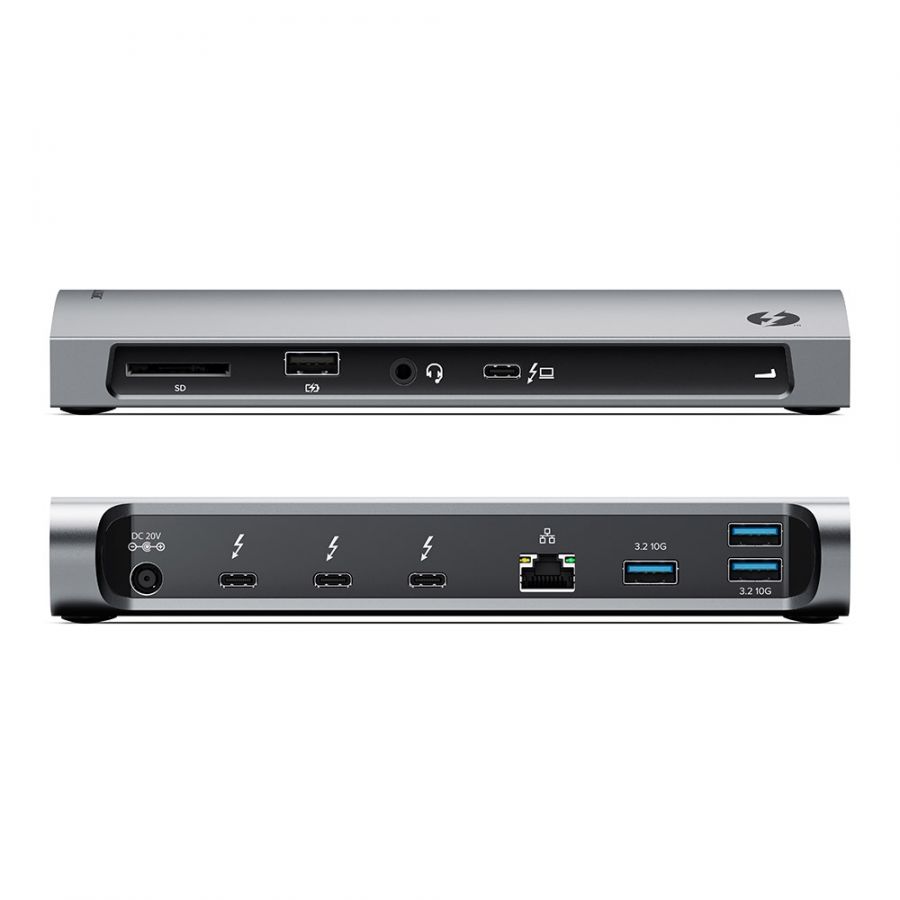

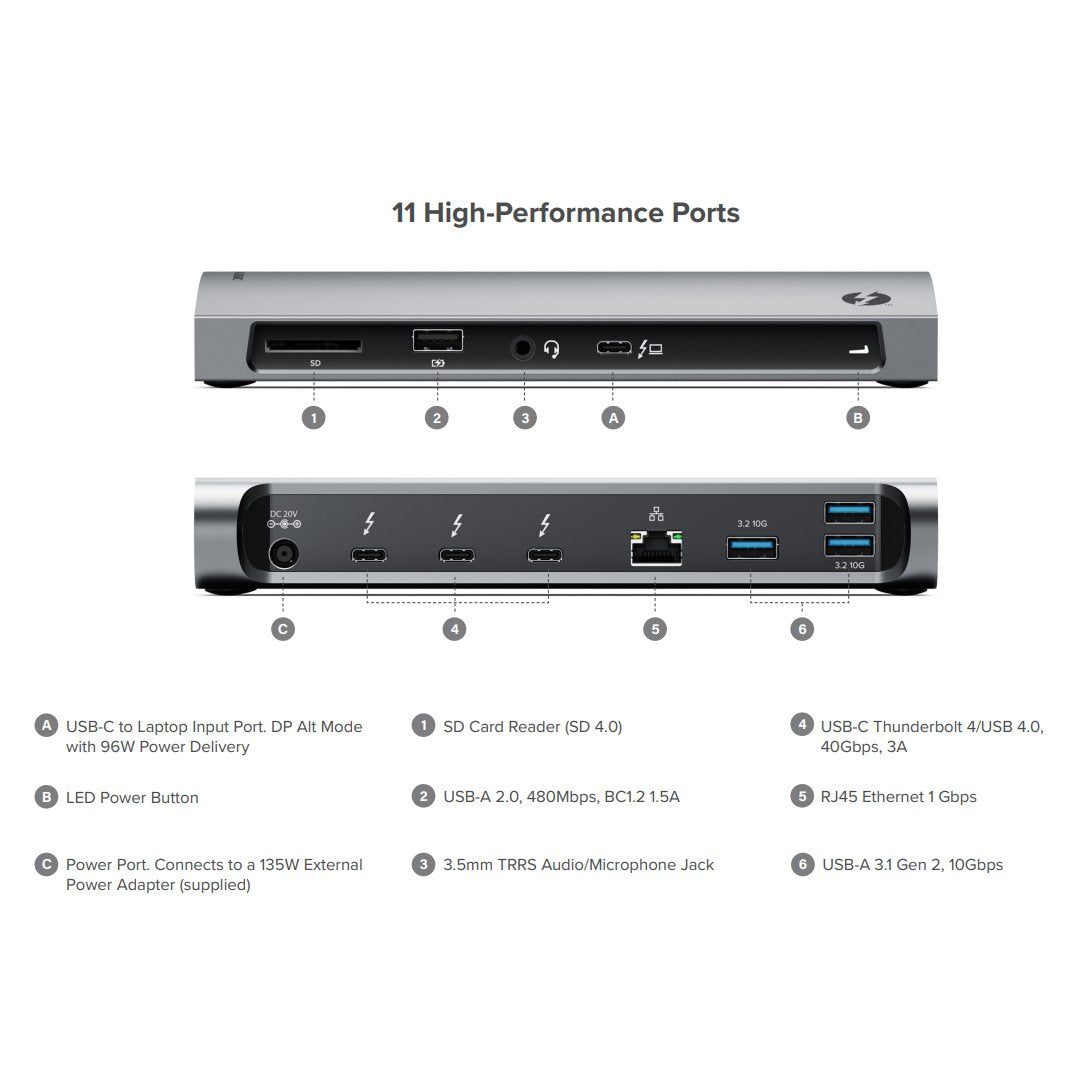

The BLAZE Thunderbolt™ 4 certified 4k docking station features ten ports that allow users to connect to a wide variety of peripherals, including:
- 3 x Thunderbolt/USB-C (40Gbps)
- 3 x USB-A (10Gbps)
- 1 x USB-A with Mobile Device Charging (480Mbps)
- Gigabit Ethernet
- Combo Headphone/Microphone Audio Jack
- SD 4.0 Card Reader
- Single Cable Simplicity
The BLAZE docking station doesn’t just provide your computer with ten extra connections – it does so over a single Thunderbolt™ 4 cable. In addition to its versatile data and video options, BLAZE’s single cable provides up to 96W USB-C PD laptop charging, sufficient to power most including 16” MacBooks.
General
The table below provides the maximum output resolutions available for Windows computers based on the version of DisplayPort Alternate mode supported on their USB-C ports.
| DisplayPort Alt Mode Version | Single Display | Dual Display |
| MST Host (Independent/Extended) | ||
| DP1.4 (HBR3) with DSC | 5120x2880 60Hz | 2x 3840x2160 60Hz |
| DP1.4 (HBR3) without DSC | 3840x2160 60Hz | 2x 3840x2160 30Hz |
| DP1.2 (HBR2) | 3840x2160 30Hz | 2x 1920x1080P 60Hz |
Troubleshooting
Check that the USB-C video cable is connected securely between the monitor and device and the device is securely connected to the computer
Check that the external monitor is turned on and set to the correct input
Check that your computer is detecting the external display and is set to show video on it
Check that the USB-C port on the computer that you have connected the dock to is a
Thunderbolt port or a USB-C port that supports video output using DisplayPort Alternate Mode
If the computer doesn’t detect the external monitor or output video after checking the above, restart your computer and attempt again
If connecting to a monitor with a USB-C or Thunderbolt input, ensure that the cable you are using supports full speed data. Many USB-C cables are intended for charging only and only support USB 2.0.
Check that the USB-C video cable is connected securely between the display and device
Check that the device is securely connected to the computer
Check that the USB-C video cable being used to connect to the display is of good quality and isn’t damaged
Ensure that the power supply is connected at the wall and turned on, and the USB-C cable supplying power is securely connected to the computer
Verify that the port on the computer is a Thunderbolt port or a USB-C port that supports charging from a USB PD power source
