USB-C Super Dock - 10-in-1 with Dual Display 4K 60Hz Support - SPACE GREY

SKU: U2CSH-SGR
Sale price€155,99
User Manual
Specification Sheet
UP2QC10AWA-SGR

Comprehensive Connectivity: 10-in-1

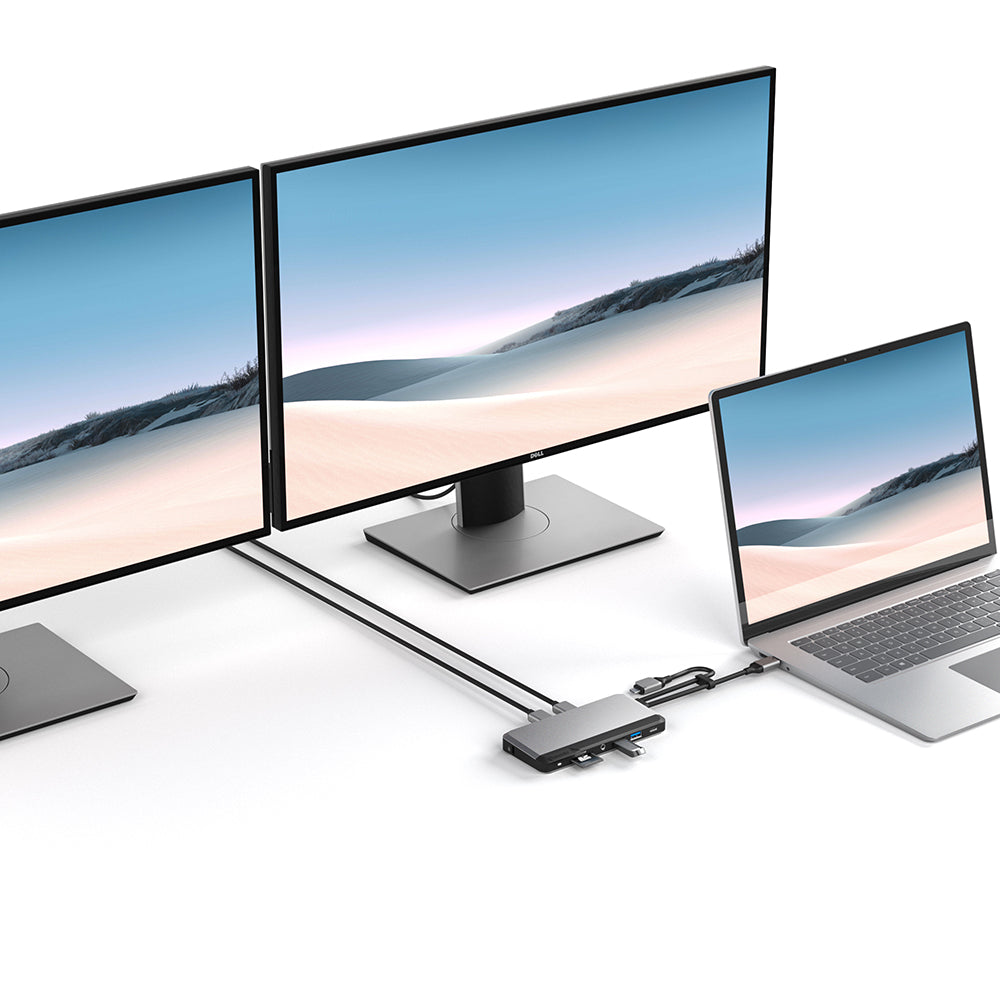

The Super Dock supports two displays at resolutions of up to 4K UHD 60Hz connected to the two HDMI 2.0 outputs. In addition to the ability to connect external monitors, the dock provides access to a full range of connections for USB-C and USB-A peripherals, Ethernet, audio devices and SD and Micro SD card readers for transferring your data, photos and videos. With support for USB Power Delivery Passthrough, you can connect your computer to a wide range of peripherals and even charge it from the Super Dock with up to 100W of power over a single cable (requires a suitable USB PD power supply, available separately). The dock also features a lock slot for securing it to a desk when being used in an office or a hot desking environment.

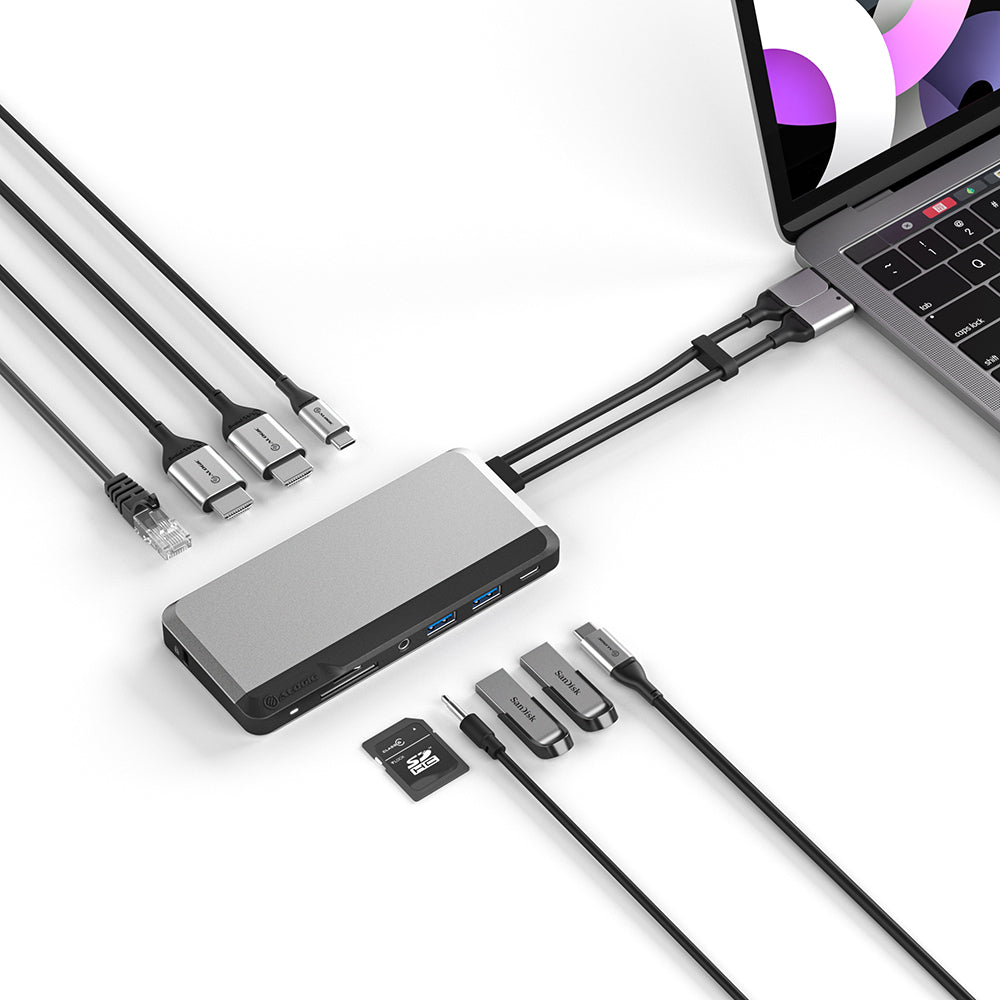

Comprehensive Connectivity

The 10-in-1 USB-C Super Dock provides access to all of the most popular ports required for use at home, at the office and on-the-go.

UP2QC10AWA-SGR

Universal Compatibility : Windows & Mac

With a plug-and-play design, the ALOGIC 10-in-1 Dual USB-C Super Hub becomes an extension of your MacBook, iPad Pro, Windows or Chromebook device without the need for software or drivers.

Compact and Portable

ALOGIC's design innovation has allowed us to make the Super Dock small and easy to transport without compromising on any functionality. With the Super Dock your device becomes a portable workstation capable of delivering all the performance you need whether at your desk or on the road.

Frequently Asked Questions

General

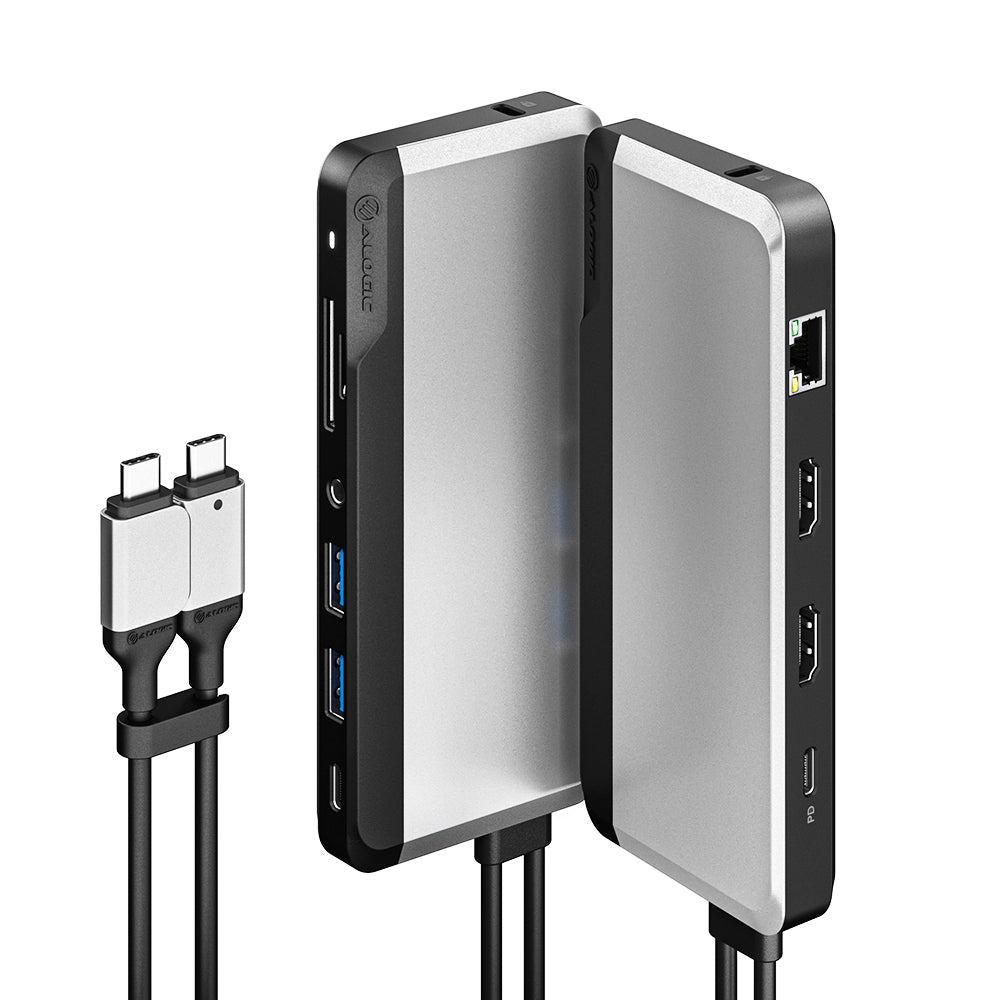

Why does the ALOGIC USB-C Super Dock have two upstream USB-C connector cables?
The ALOGIC 10-in-1 Super Dock utilizes twin magnetic USB-C cables to maximize bandwidth. Plugging both magnetic connectors into the side-by-side USB-C/Thunderbolt ports of a MacBook Pro or MacBook Air unlocks native support for dual extended 4K displays at 60Hz. The cables can also be unclipped into a single USB-C connection for universal compatibility with standard single-port laptops.
What maximum display resolution does the Super Dock support on Apple MacBooks and Windows PCs?
When connected using both magnetic USB-C plugs on a MacBook Pro/Air or dual-port Windows laptop, the Super Dock supports dual 4K @ 60Hz displays via its twin HDMI ports. When connected using a single USB-C cable to a standard USB-C laptop, it supports a single 4K @ 60Hz display (or dual displays at 1080p depending on host MST capabilities).
Can the ALOGIC Super Dock charge my connected laptop?
Yes. The dock includes a dedicated USB-C Power Delivery (PD) input port. Connecting your laptop's original USB-C charger or a high-wattage USB-C PD power adapter to the dock enables pass-through Power Delivery charging to your host computer while running all 10 expansion ports.
Will the Super Dock support dual extended monitors on base Apple M1, M2, and M3 MacBooks?
The twin-cable design provides dual extended 4K displays on Intel MacBooks and MacBooks with Pro, Max, or Ultra processors. Base M1, M2, and M3 MacBooks (which natively limit external video output to a single monitor over USB-C) will output to one extended 4K monitor.
What ports are included on the ALOGIC 10-in-1 Super Dock?
"The ALOGIC 10-in-1 Super Dock converts your laptop setup into a 10-port workstation:
Video: 2x HDMI 2.0 ports (Up to Dual 4K @ 60Hz).
USB Ports: 1x USB-C 3.2 Gen 1 (5Gbps Data), 2x USB-A 3.2 Gen 1 (5Gbps Data), and 1x USB-C PD Input.
Networking: 1x RJ45 Gigabit Ethernet port (1Gbps).
Storage & Audio: SD and MicroSD card slots (SD 3.0 UHS-I) plus a 3.5mm combo audio jack."
Does the ALOGIC 10-in-1 Super Dock come with a wall power supply?
No. The Super Dock is a portable, bus-powered hub that can operate directly off host power for basic peripheral use. To activate laptop pass-through charging, simply plug your USB-C laptop charger into the dock’s PD input port.
Specifications
  • SKU: U2CSH-SGR
  • Barcode (EAN): 9350784019905
  • Displays: Single display, Dual display
  • Displays: Dual display
  • Host Connection Technology: USB-C
  • Mac Processor Type: M1/M2, M1/M2 Ultra/Pro/Max, Intel
  • Display supported on Mac M1/M2: Single display
  • Display supported on Mac M1/M2 Ultra/Pro/Max: Single display, Dual display
  • Display supported on Mac Intel: Single display, Dual display
  • Display supported on Windows: Single display, Dual display
  • Display supported on Chrome: Single display, Dual display
  • Docking Station Type: Portable
  • Warranty: 2 Years
  • Physical Characteristics: Product Dimensions: 138 x 62 x 16mm | Materials: Aluminium and ABS with rubber coating | Colour: Space Grey | Weight: 150g
  • Additional Features: Ethernet, 3.5mm Audio, Card Reader
  • Resolution: Up to 2 x 4K UHD 60Hz, host computer dependent See resolution support tables for maximum outputs
  • Input: 1 x USB-C Port (Primary), 1 x USB-C Port (Secondary - Optional) | Selected port(s) on the host computer should support USB-C DisplayPort Alternative Mode
  • Output: 1 x USB-C 3.2 Gen 1 (5G) with Power Pass thru 100W – Data + Power, 1 x USB-C 3.2 Gen 1 (5G) – Data Only, 2 x USB-A 3.2 (5G), SDP, 1 x Audio / Microphone TRRS, support both CTIA and OMTP, 1 x RJ45 Ethernet 1Gbps, 1 x SD Card & Micro SD Card, 2 x HDMI
  • Device Compatibility: Apple, Chromebook, Microsoft
