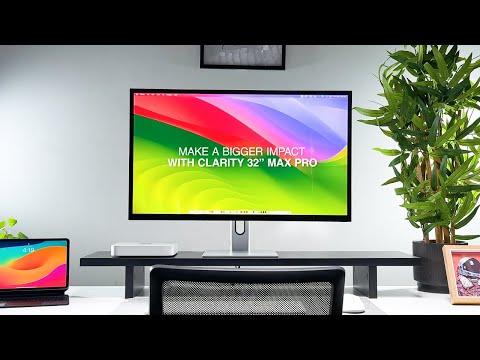

Clarity Max Pro 32" UHD 4K Monitor with USB-C Power Delivery and Webcam
"Colorful, rich, and bright — it’s a monster of a display that will wow you for a fraction of the price of many of its competitors"
"The 32-inch models all provide up to 65-watts of passthrough power via USB-C to keep your laptop charged."
"Following up its popular 27-inch display lineup, Alogic has new 32-inch models."
"The Alogic Clarity 32-inch 4k UHD display monitors use IPS panels and four variants suit a wide range of uses."
The technology behind our Clarity monitors hasn’t lost any of its lustre in
the transition to a bigger screen. They remain a studio-grade tool for creatives professionals
who rely on accurate colours to work.

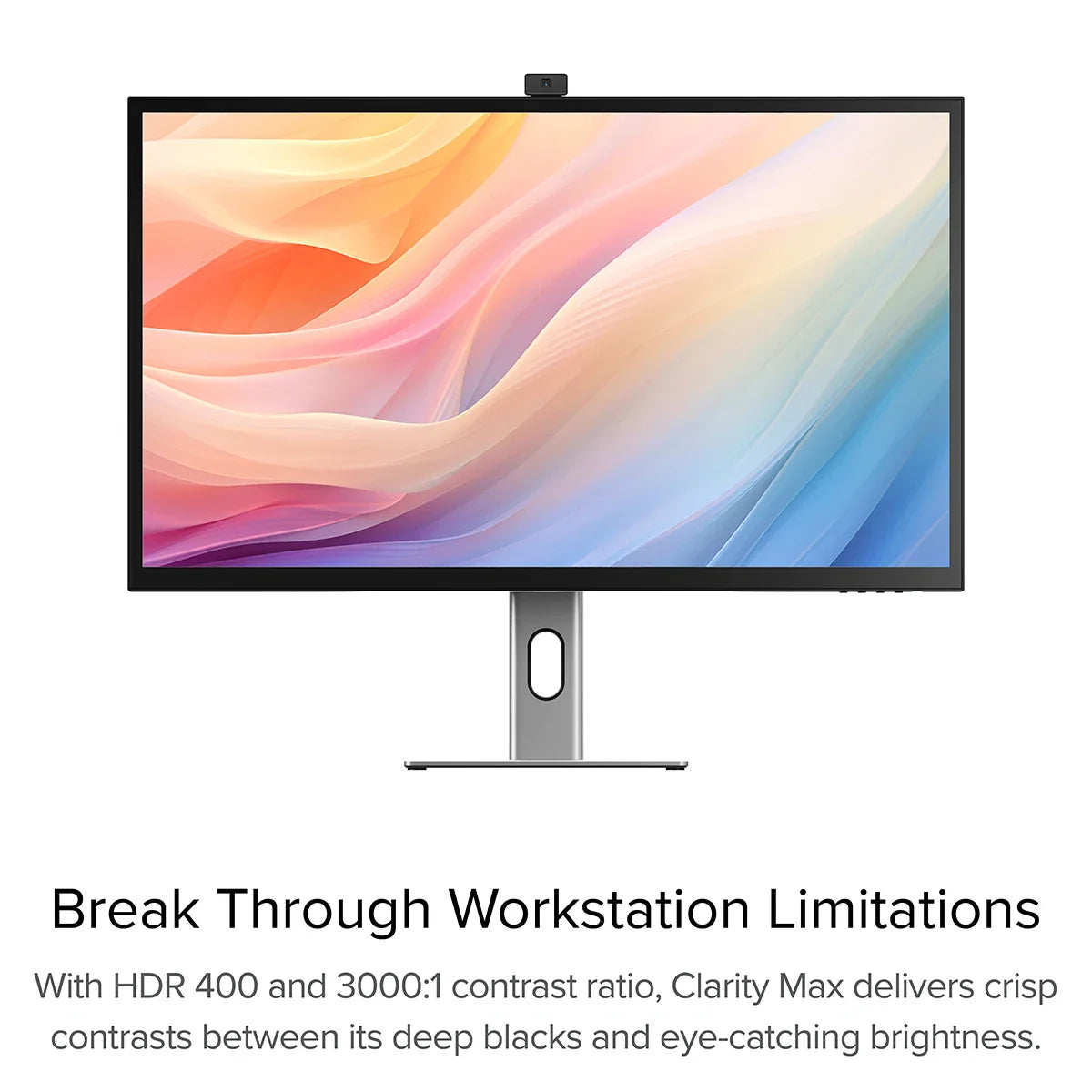

With HDR400 support and a 3000:1 contrast ratio, Clarity Max delivers crisp contrasts between
its deep blacks and eye-catching brightness. Offering more than 16 million colours across their
4K Ultra High Resolution display, Clarity Max monitors are the perfect place to realise your
next
masterpiece.
Sitting at the centre of your studio, Clarity Max Pro connects your computer to
everything you need to compose your next piece.
Its rear USB hub connects your computer Clarity Max Pro’s webcam, two USB-A accessories, 65W laptop
charging and your 3.5mm speakers or headphones – all with the same USB-C cable you’re using for
video.

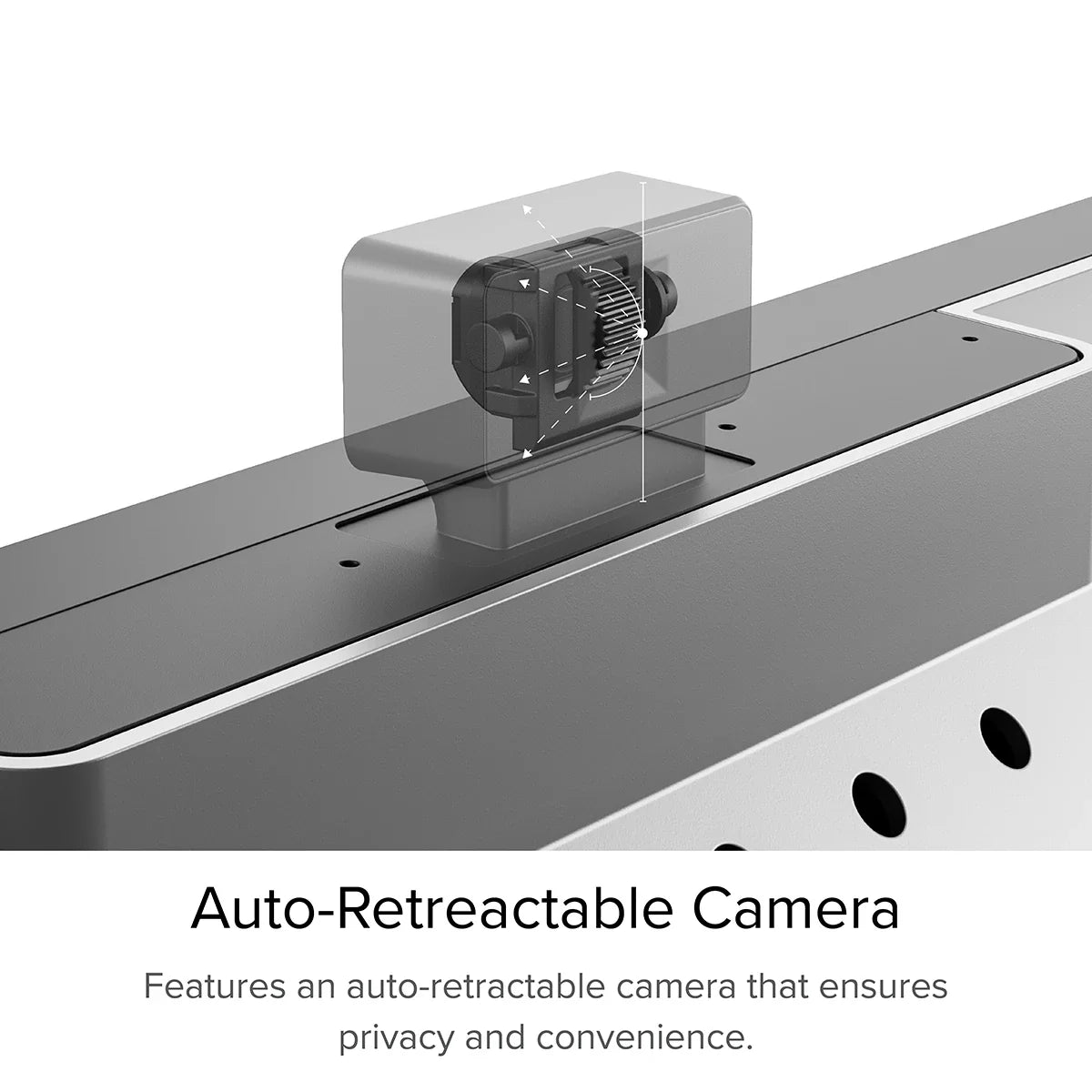

Put your best foot forward with the crystal-clear picture of Clarity Max Pro or Touch’s 8MP retractable webcam. The smart webcam automatically slides back into the monitor when it’s not in use, preventing you from sharing anything you didn’t mean to.

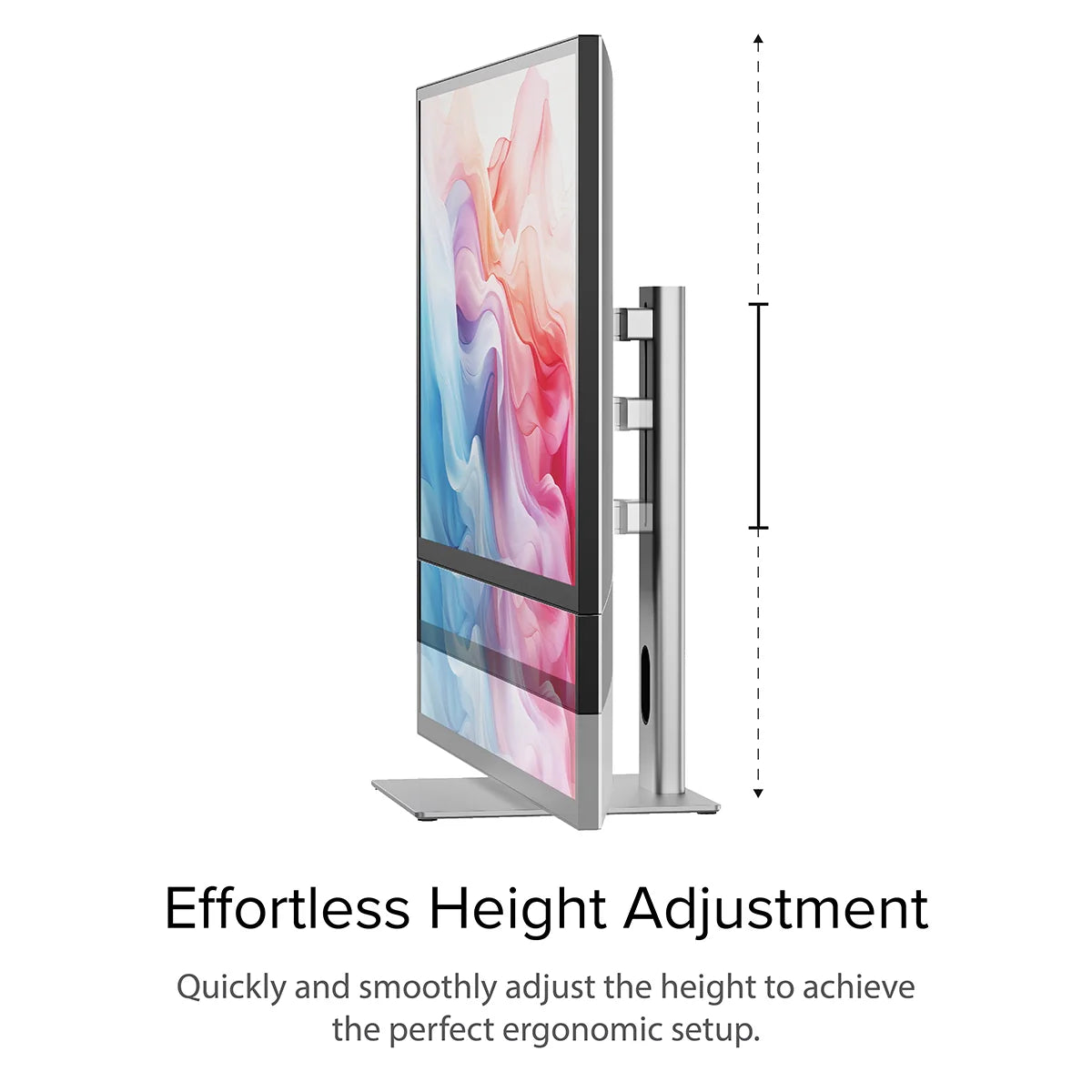

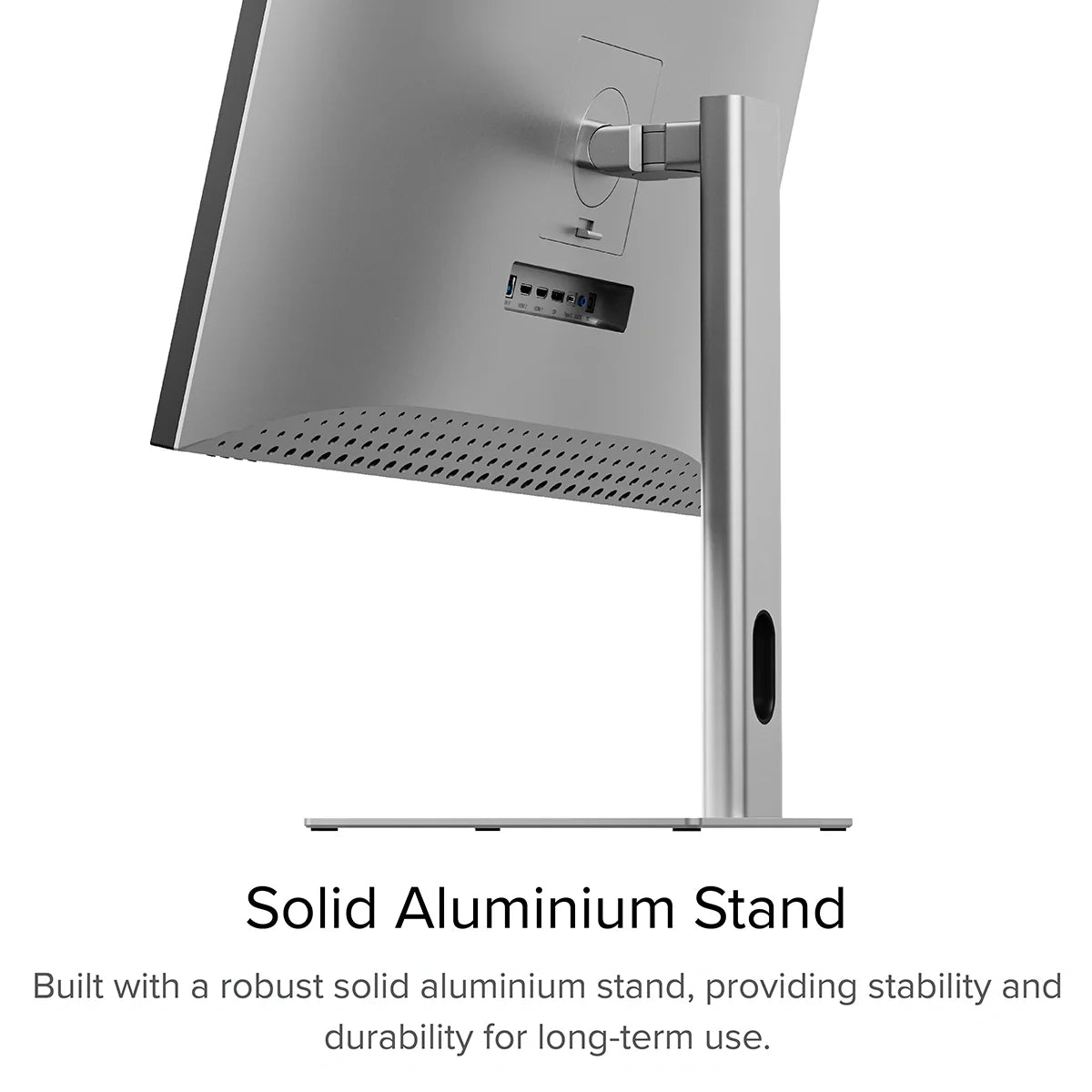

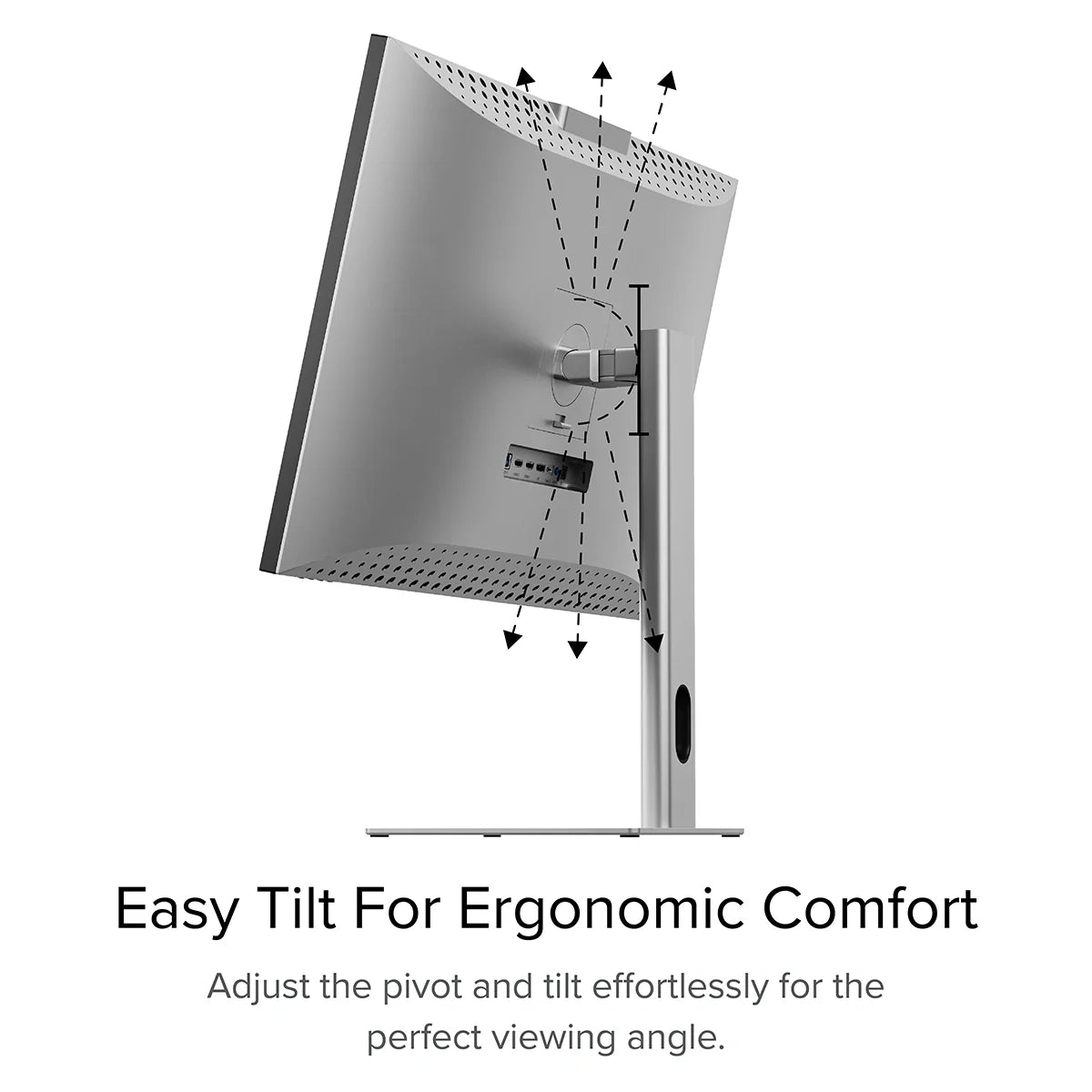

Our aluminium stand makes it easy to position Clarity Max exactly where you
need it, letting you raise, pivot, tilt and swivel the display to fit your desk setup and maximise
ergonomic comfort.
With Clarity Max, it’s easy to show off your latest design to colleagues, with wide 178° viewing
angles across its broad 32” screen.
Compatible with 100x100mm VESA Mounts (such as our Clarity Fold Stand and Glide Monitor Arms),
Clarity Max is an easy inclusion in any setup, despite its size.
General
As a larger monitor, it’s important to check your monitor stand will support Clarity Max to avoid damaging your monitor.
Clarity Max is 32”, weighs 6.5kg without the stand and measures 725*250*606mm (LxDxH).
1. Connected to Clarity via either:Clarity's USB-C port or Clarity's USB-B port
2. Clarity "Active USB" mode is set to the same USB port you've connected to your computer.
To change Clarity's "Active USB" mode, navigate to "USB Switch" in the "Other Settings" menu of Clarity's main menu.
For example: if your computer is connected to Clarity via USB-C, you would select "Type-C" in the "USB Switch" menu.
In order to get multitouch working on macOS, you’ll need to install our macOS drivers.
Clarity’s Webcam hasn’t been tested with legacy versions of Windows and macOS.
However, it does need to plug into a USB-C port compatible with PD (Power Delivery) on your computer.
These can sometimes be identified by the presence of a battery icon next to the port on your laptop, but often you’ll need to check the user manual or manufacturer’s website to figure out which USB-C ports support PD.
All Thunderbolt 3 and 4 ports support PD.

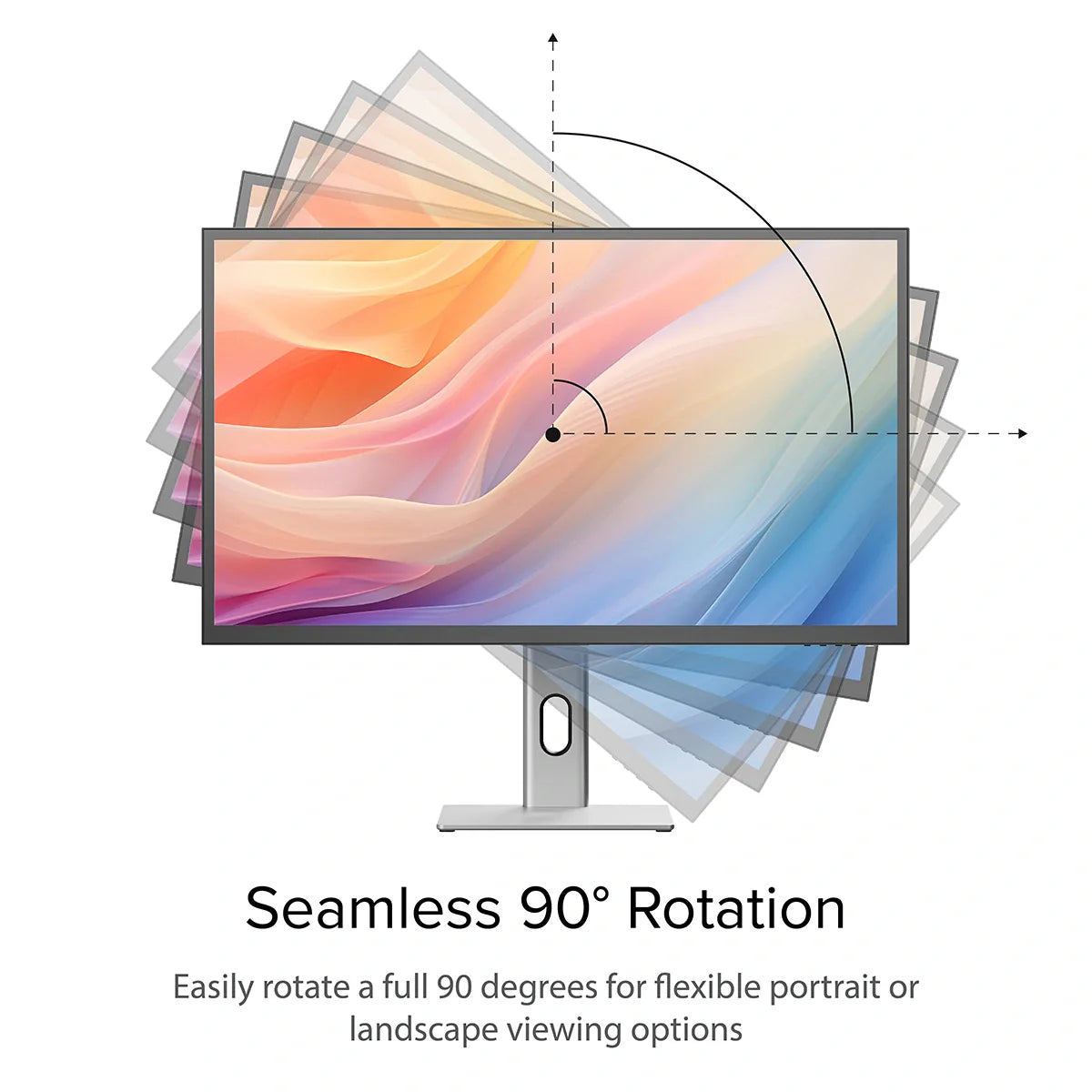

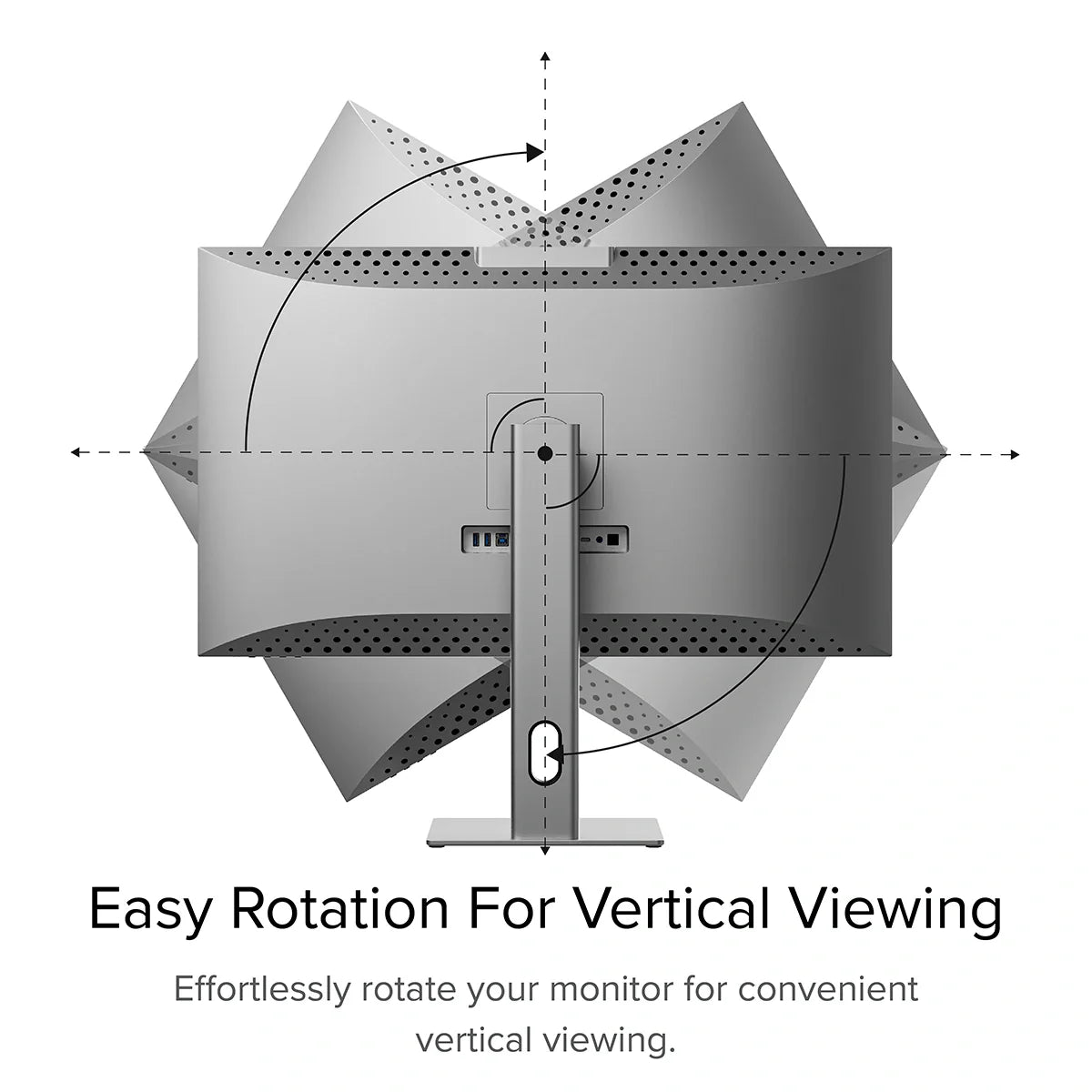

1. Ensure the monitor is at its maximum height on the stand.
2. Tilt the monitor as far as it can go by pulling its bottom edge towards you.
You can then slowly rotate the monitor without the corner hitting the desk.
Clarity Max’s screen won’t automatically rotate after you move the monitor. To rotate the picture, follow these steps:
Mac
1. Open System Settings -> Displays.
2. Click on your Clarity Max and change ‘Rotation’ to 90° or 270°, depending on which way you turned it.
Windows
1. Open Settings -> System - > Display.
2. Click on Clarity Max, and under the ‘Scale & layout’ menu, switch ‘Display Orientation’ to Portrait or Portrait Flipped, depending on which way you turned it.
Troubleshooting
To resolve the issue, restart Clarity by pressing the power button twice – it should recognize the connected device as part of its boot-up sequence.
If this issue persists, we recommend trying the following steps to isolate the issue:
Connect Clarity directly to your computer
Try connecting with a different cable or port.
ie. Use DisplayPort instead of USB-C
Update your computer’s operating system.
If your problem reoccurs and these these steps do not help resolve it, please contact ALOGIC support ( support.eu@alogic.co).
Webcam
As a result, the webcam will work with any program attempting to access a webcam.
This includes videoconfering programs such as:
Microsoft Teams
Skype
Google Meet
Slack
Cisco Webex
Zoom
GoTo Meeting
As well as livestreaming programs like:
Open Broadcaster Software (OBS)
Xplit
Streamlabs
Open a program which requires the webcam – on Windows 11 we recommend the “Camera” app or “Photo Booth” on macOS.
Open this application and switch the active camera to Clarity Pro’s – this can be done via the “Camera” menu in Photo Booth or hitting the “Switch Camera” button in Camera – see below.
Once you’ve activated Clarity Pro’s webcam, it will slide up out of the monitor. You can now adjust its vertical framing using the scroll wheel on the rear of the camera.
Display
The stats listed below are the average colour accuracy for Clarity Max, although be aware that each panel’s colour
Although each monitor is varies slightly, below are the average colour accuracy stats for Clarity Max.
Clarity Max:
- Gamut Coverage (NTSC): 91%
- Gamut Coverage (DCI-P3): 96%
- Gamut Coverage (SRGB): 99.9%
- Gamut Coverage (Adobe RGB): 97%
- Gamut Coverage (BT2020 CIE1976): 77%
- Average ΔE: <1
Clarity Max Pro and Clarity Max Touch:
- Gamut Coverage (NTSC): 95%
- Gamut Coverage (DCI-P3): 102%
- Gamut Coverage (SRGB): 98%
- Gamut Coverage (Adobe RGB): 110%
- Gamut Coverage (BT2020 CIE1976): 76%
- Average ΔE: <1
If you wish to further calibrate your monitor, you will need to use a third-part calibration tool, such as a Calibrite/Sypder.
